Multimode Filter Wavelength Division Multiplexer |
|
|
|
| Features
|
|
Applications
|
|
| Low
Insertion Loss |
WDM Networks |
|
| High Return Loss |
|
Local Area Networks |
|
| High
Environmental Stability |
Research |
|
|
|
|
| Specifications |
| Parameters |
¡¡ |
Unit |
Values |
| Pass
Band |
Wavelength Range |
nm |
830-870(1290-1330) 1270-1350(1530-1600) |
| Typ. Insertion Loss |
dB |
0.3 |
| Max. Insertion Loss |
dB |
0.5 |
| Typ. Isolation |
dB |
35 |
| Min. Isolation |
dB |
30 |
| Reflection
Band |
Wavelength Range |
nm |
1290-1330(830-870) 1530-1600(1270-1350) |
| Typ. Insertion Loss |
dB |
0.3 |
| Max. Insertion Loss |
dB |
0.5 |
| Typ. Isolation |
dB |
15 |
| Min. Isolation |
dB |
12 |
| Min. Return Loss |
dB |
35 |
| Min. Directivity |
dB |
35 |
| Max. TDL |
dB |
0.15 |
| Package Dimensions |
mm |
Bare Fiber & Loose Tube ¦µ5.5*55 |
|
3mm Cable
12(W)*10(H)*120(L) |
| Max. Optical Power
(CW) |
mW |
500 |
| Max. Tensile Load |
N |
5 |
| Fiber Type |
um |
Multimode Fiber 62.5/125/250 or 50/125/250 |
| Operating
Temperature |
¡æ |
-5 to
+70 |
| Storage Temperature |
¡æ |
-40 to
+85 |
|
|
|
| *Above
specifications are for device without connector. |
|
| *For
devices with connectors, IL will be 0.2dB higher and RL will be 20dB lower. |
|
|
|

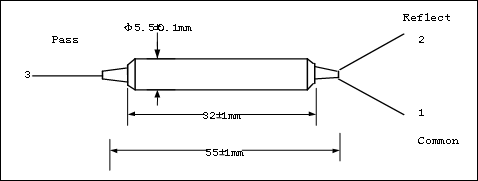

| Package Dimensions
|
|
|
|
| Ordering
Information |
|
|
| AMMFWDM-¢Ù¢Ù¢Ù¢Ù-¢Ú-¢Û¢Û¢Û-¢Ü¢Ü¢Ü-¢Ý |
|
|
|
|
|
|
| ¢Ù¢Ù¢Ù¢Ù: Wavelength |
¢Û¢Û¢Û:
Connector Type on Port 1, 2 & 3 |
¢Ü¢Ü¢Ü: Fiber Jacket on Port 1, 2 & 3 |
| 3155 - 1310nm Pass / 1550nm Reflect |
1 - FC/UPC |
|
B - 250um Bare
Fiber |
| 5531 - 1550nm Pass / 1310nm Reflect |
2 - ST/UPC |
|
L - 900um Loose
Tube |
| 8531 - 850nm Pass / 1310nm Reflect |
3 - LC/UPC |
|
C - 3mm Cable |
| 3185 - 1310nm Pass / 850nm Reflect |
4 - SC/UPC |
|
S - Specify |
|
|
N - None |
|
| ¢Ú: Fiber Core Diameter |
S - Specify |
|
¢Ý: Fiber Length |
| 1 - 62.5um |
|
1 - 1.0m |
| 2 - 50um |
|
S - Specify |
|
|
|
|
|
|
