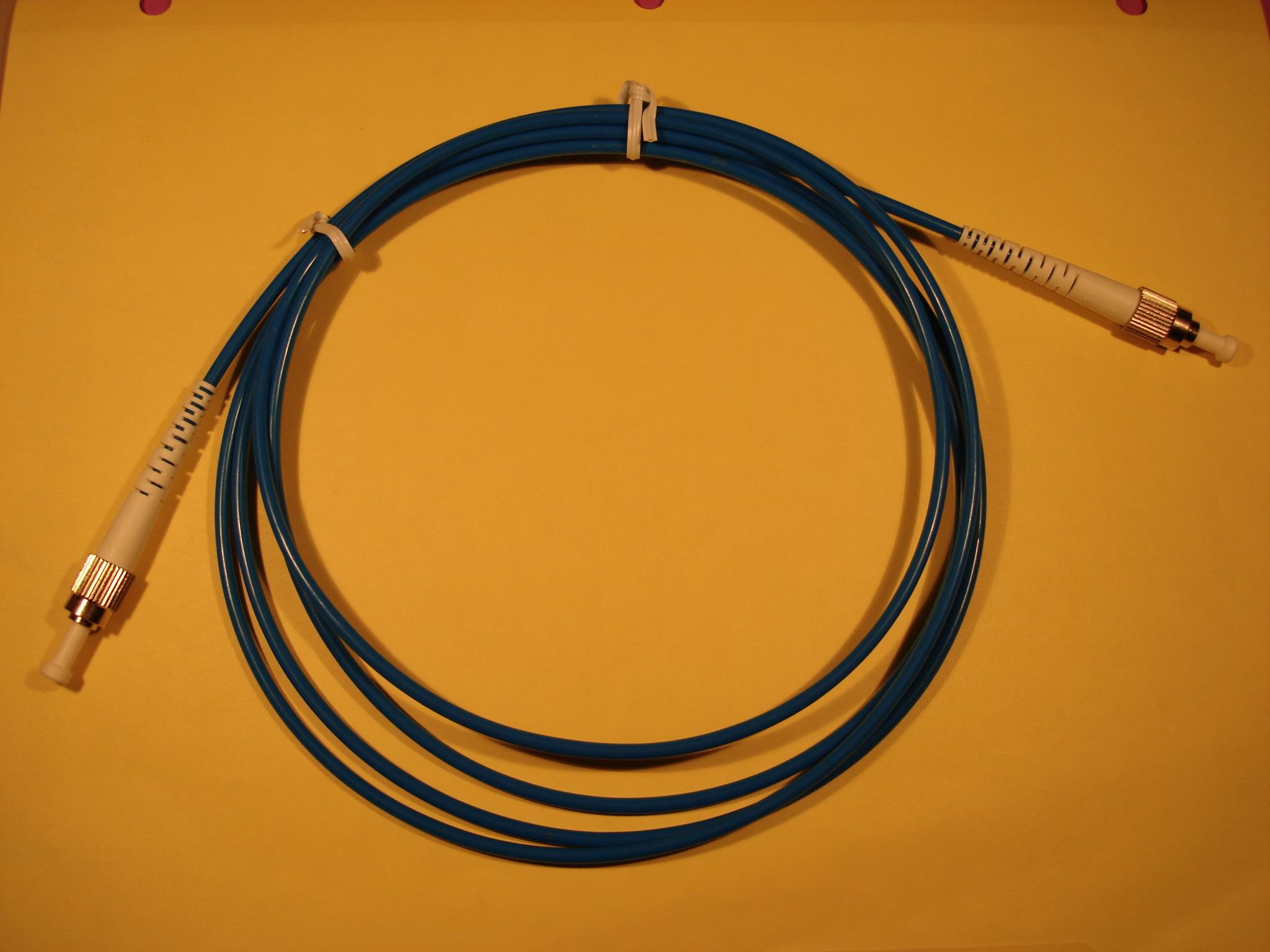

Patchcord |
|
| |
|
| Features
|
|
Applications
|
|
| Low Loss |
|
Instruments |
|
| High Return Loss |
|
Networks |
|
| High Exchangibility |
|
Testing Systems |
|
| High Reliability |
|
|
| |
|
| Specifications |
| Parameters |
Unit |
Values |
| Wavelength |
nm |
980*, 1064*, 1310, 1480 or 1550 |
| Typ.
Insertion Loss |
dB |
0.3 |
0.4 |
| Max.
Insertion Loss |
dB |
0.5 |
| Min. Return
Loss |
dB |
50 |
60 |
| Max. Optical
Power (CW) |
mW |
300 |
| Max. Tensile Load |
N |
5 |
| Fiber Length
Tolerance |
% |
± 10 |
| Operating
Temperature |
℃ |
-5 to
+70 |
| Storage
Temperature |
℃ |
-40 to
+85 |
| |
|
| *
IL is 0.1dB higher for short wavelength, including 980nm & 1064nm. |
|
| |
|
|
|
| Package Dimensions |
|
|
|
 |
| Ordering Information |
|
|
| AP-①①-②-③③-④-⑤-⑥ |
|
|
| |
|
| ①①:
Wavelength
|
③③:
Connector Type on End 1 & 2 |
⑤: Fiber Type |
| 98 - 980nm |
1 - FC/UPC |
F - SMF-28e Fiber |
| 06 - 1064nm |
2 - FC/APC |
H - HI 1060 Fiber |
| 31 - 1310nm
|
3 - SC/UPC |
S - Specify |
| 48 - 1480nm |
4 - SC/APC |
|
| 55 - 1550nm
|
N - None |
⑥: Fiber Length |
| S - Specify |
S - Specify |
1 - 1.0m |
| |
S - Specify |
| ②: Key
Width (for FC Connector) |
④:
Fiber Jacket |
|
| R - 2.02mm |
T - 900um Tight Buffer |
|
| |
L
- 900um Loose Tube |
|
| |
C - 3mm Cable |
|
| |
S - Specify |
|
|
|
|
|
|
