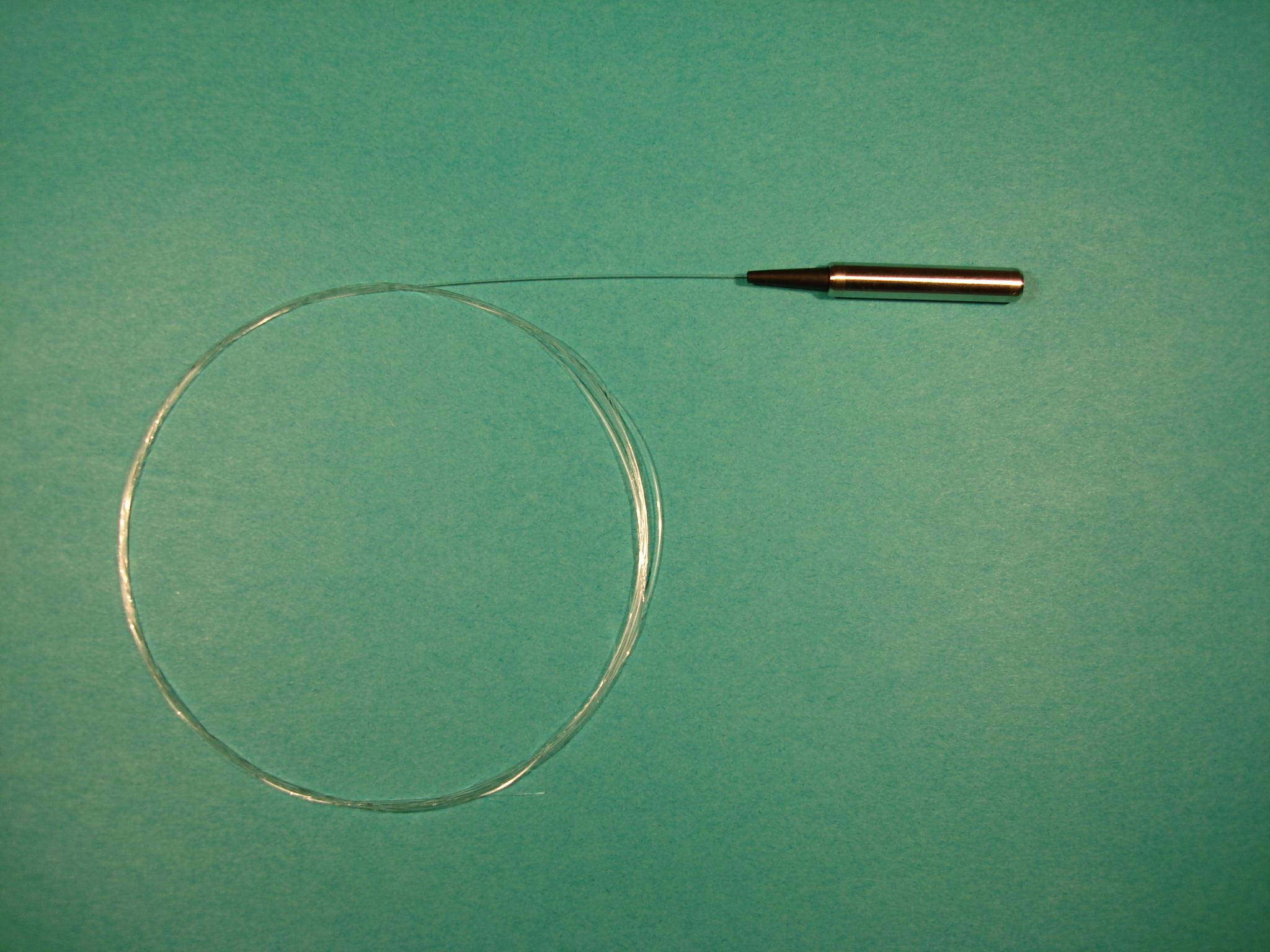

Faraday Mirror |
|
|
|
| Features |
Applications |
|
| Low Insertion Loss |
Coherent Detecting |
|
| Environmental Stability |
DWDM Systems |
|
|
Fiber Sensors |
|
|
SOAs |
|
|
|
|
| Specifications |
| Parameters |
Unit |
Values |
| Center
Wavelength (¦Ëc) |
nm |
1310, 1480 or 1550 |
| Operating
Wavelength Range |
nm |
¡À15 |
| Typ.
Insertion Loss
|
dB |
0.4 |
| Max.
Insertion Loss |
dB |
0.6 |
| Faraday
Rotation Angle (Single Pass) |
¡æ |
45 |
| Max. Rotation
Angle Tolerance at 23¡ãC, ¦Ëc |
¡æ |
¡À1 |
| Max. PDL |
dB |
0.05 |
| Max. PMD |
ps |
0.05 |
| Max. Optical
Power (CW) |
mW |
500 |
| Max. Tensile
Load |
N |
5 |
| Fiber Type |
¡¡ |
SMF-28e Fiber |
| Operating
Temperature |
¡æ |
-5 to
+70 |
| Storage
Temperature |
¡æ |
-40 to
+85 |
|
|
|
| *Above
specifications are for device without connector. |
|
| *For
devices with connectors, IL will be 0.3dB higher and RL will be 5dB lower. |
|
|
|
| Package Dimensions |
|
|
 |
|
|
| Ordering Information |
|
| AFM- ¢Ù¢Ù-¢Ú-¢Û-¢Ü |
|
|
|
|
|
| ¢Ù¢Ù:
Wavelength |
|
¢Û: Fiber Jacket |
|
| 31 - 1310nm |
|
B - 250um Bare
Fiber |
|
| 48 - 1480nm |
|
L - 900um Loose Tube |
|
| 55 - 1550nm |
|
T - 900um Tight
Buffer |
|
| SS - Specify |
|
C - 3mm Cable |
|
|
|
S - Specify |
|
| ¢Ú:
Connector Type |
|
|
| 1 - FC/UPC |
|
¢Ü: Fiber Length |
|
| 2 - FC/APC |
|
1 - 1.0m |
|
| 3 - SC/UPC |
|
S - Specify |
|
| 4 - SC/APC |
|
|
| N - None |
|
|
| S - Specify |
|
|
|
|
|
|
|
