Polarization Insensitive
Isolator Core
|
|
| |
|
|
| Features
|
|
Applications
|
|
|
|
| High Isolation |
|
Faraday Rotator Based
Component for In-ine Fiber Optic Isolator |
| Low Insertion Loss |
|
Integrate with Other
Components to Block Back Reflection |
| Low PDL |
|
Enhance Device Isolation |
|
|
| Low PMD |
|
|
|
| |
|
|
| Specifications |
|
| Parameters |
Unit |
Values |
| Stage |
|
Single Stage |
Dual Stage |
Single Stage |
Dual Stage |
| Center Wavelength |
nm |
1310 or 1550 |
1064 |
| Operating
Wavelength Range |
nm |
±20 |
±5 |
| Typ. Peak
Isolation |
dB |
42 |
52 |
38 |
52 |
| Min.
Isolation at 23℃
|
dB |
40 |
50 |
35 |
48 |
| Max.
Insertion Loss at 23℃ |
dB |
0.12/0.151 |
0.25 |
1.0 |
2.0 |
| Max. PDL at
23℃ |
dB |
0.05 |
0.05 |
0.05 |
0.1 |
| Max. PMD |
ps |
0.2/0.051 |
0.05 |
- |
- |
| Max. Optical
Power (CW) |
|
300 |
| Max. Tensile
Load |
N |
5 |
| Operating
Temperature |
℃ |
-5 to +70 |
-5 to +50 |
| Storage
Temperature |
℃ |
-40 to +85 |
| |
|
|
|
| 1For PMD Compensated Version. |
|
|
|
| |
|
|
|

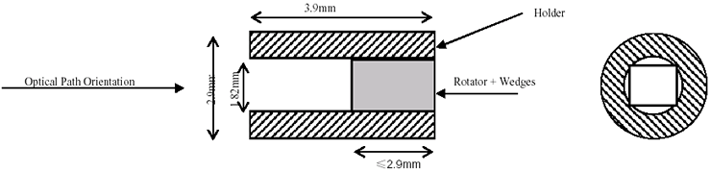

| Package
Dimensions |
|
|
|
|
 |
| Ordering
Information
|
|
|
|
| APIIC-①①-②-③-④ |
|
|
|
| |
|
|
|
| ①①: Wavelength |
③: PMD Requirement |
|
|
|
| 06 - 1064nm |
1 - 0.05ps Max. |
|
|
|
| 55 - 1550nm |
2 - Refer to above Spec. |
|
|
|
| 31 - 1310nm |
|
|
|
|
| SS - Specify |
④:
Optical Path Orientation |
|
|
| |
F - Forward (as indicated above) |
|
|
| ②: Stage |
B - Backward |
|
|
|
| S - Single Stage |
|
|
|
|
| D - Dual Stage |
|
|
|
|
|
|
|
|
|
|
