Coarse Wavelength
Division Multiplexer Module |
|
(4 channels/8channels) |
|
| Features |
|
|
Applications |
| Wide Passband |
|
CWDM Systems |
| Low Insertion Loss |
|
Fiber Lasers |
| High Channel Isolation |
|
Research |
| Excellent Environmental
Stability |
|
|
|
| Specifications |
| Parameters |
Unit |
4-channel |
8-channel |
| Center
Wavelength Range |
nm |
1511, 1531, 1551,
1571 |
1471, 1491,
1511, 1531, 1551, 1571, 1591, 1611 |
| Pass Band |
nm |
¡À6.5 |
¡À6.5 |
| Insertion
Loss |
dB |
¡Ü1.8 |
¡Ü2.8 |
| Adjacent Ch.
Isolation (Mux) |
dB |
N/A |
N/A |
| Adjacent Ch.
Isolation (Demux) |
dB |
¡Ý25 |
¡Ý25 |
| Non. Adjacent
Ch. Isolation (Demux) |
dB |
¡Ý40 |
¡Ý40 |
| Return Loss |
dB |
¡Ý50 |
¡Ý50 |
| Directivity |
dB |
¡Ý55 |
¡Ý55 |
| PDL |
dB |
¡Ü0.1 |
¡Ü0.1 |
| PMD |
ps |
¡Ü0.2 |
¡Ü0.2 |
| Thermal
Stability |
¡æ |
¡Ü0.005 |
¡Ü0.006 |
| Max. Optical
Power (CW) |
mW |
500 |
500 |
| Max. Tensile
Load |
N |
5 |
5 |
| Fiber Type |
¡¡ |
SMF-28e Fiber |
SMF-28e Fiber |
| Operating
Temperature |
¡æ |
-5 to+70 |
-5
to+70 |
| Storage
Temperature |
¡æ |
-40
to +85 |
-40 to +85 |

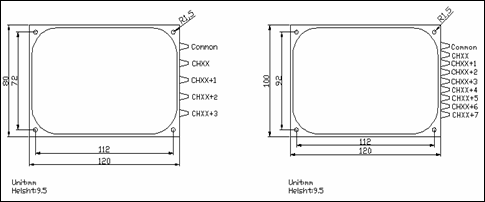

| Package
Dimensions |
mm |
120*80*9.5 |
120*100*9.5 |
|
|
|
| *Above
specifications are for module without connector. |
|
| *For
module with connectors, IL will be 0.3dB higher and RL will be 5dB lower. |
| |
|
|
|
|
|
|
 |
|
|
|
| Ordering
Information |
|
|
| ACWDMM-¢Ù-¢Ú-¢Û-¢Ü-¢Ý-¢Þ |
|
|
|
| ¢Ù:
Wavelength |
|
¢Û: Number of Channels |
¢Ý: Fiber Jacket |
| 1 - 1511nm,1531nm,1551nm,1571nm |
|
4 - 4 Channels |
B - 250um Bare
Fiber |
| 2 - 1471nm,1491nm,1591nm,1611nm |
|
8 - 8 Channels |
L - 900um Loose
Tube |
| 3 - 1471nm,1491nm,1511nm,1531nm |
|
C - 3mm Loose
Cable |
| 4 - 1511nm,1531nm,1591nm,1611nm |
|
¢Ü: Connector Type |
S - Specify |
| 5 - 1471nm, 1491nm, 1511nm,1531nm, |
|
1 - FC/UPC |
|
| 1551nm,
1571nm, 1591nm, 1611nm |
|
2 - FC/APC |
¢Þ: Fiber Length |
|
3 - SC/UPC |
0.5 - 0.5m |
| ¢Ú: Module
Type |
|
4 - SC/APC |
S - Specify |
| M - MUX |
|
N - None |
|
| D - DEMUX |
|
S - Specify |
|
|
|
|
|
|
