1064nm Polarization Maintaining Filter Coupler |
| Features |
|
Applications |
|
| High Extinction Ratio |
|
Telecommunications |
|
| High Return Loss |
|
Optical Amplifier |
|
| Low Cost |
|
Fiber Lasers |
|
|
|
Testing Systems |
|
|
|
|
|
| Specifications |
| Parameter |
Unit |
Values |
| Center Wavelength |
nm |
1064 |
| Operating Wavelength Range |
nm |
¡À 20 |
| Coupling Ratio (for Port 2 only) |
% |
1¡À0.2, 2¡À0.4, 5¡À1.0, 10 & 50 |
| Min. Return Loss |
dB |
50 |
| Min. Extinction Ratio (only for B Type) |
dB |
20 |
| Min. Extinction Ratio (only for F Type) |
dB |
23 |
| Max. Excess Loss |
dB |
0.8 |
| Max. Uniformity (for 50/50 only) |
dB |
0.5 |
| Max. Optical Power (CW) |
mW |
300 |
| Max. Tensile Load |
N |
5 |
| Fiber Type |
¡¡ |
PM 980 Panda Fiber or HI 1060 Fiber on Tap Port (Port 2) |
| PM 980 Panda Fiber on Input & Output Port (Port 1 & 3) |
| Operating Temperature |
¡æ |
-5 to +70 |
| Storage Temperature |
¡æ |
-40 to +85 |
|
|
|
|
| *Above specifications are for device without connector. |
|
| *For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower, and ER will be 2dB lower. |
| *The PM fiber and the connector key are aligned to the slow axis. |
|
|
|
|
|

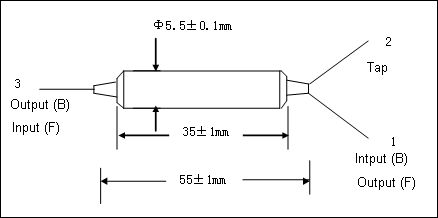

| Package Dimensions |
|
|
|
|
|
| Ordering Information |
|
|
|
| APMFC-¢Ù¢Ù-¢Ú-¢Û¢Û-¢Ü-¢Ý¢Ý¢Ý-¢Þ¢Þ¢Þ-¢ß-¢à |
|
|
|
|
|
|
| ¢Ù¢Ù: Wavelength |
¢Ü: Axis Alignment |
¢Þ¢Þ¢Þ: Fiber Jacket on Port 1, 2 & 3 |
| 06 - 1064nm |
F - Fast Axis Blocked |
B - 250um Panda Fiber |
| SS - Specify |
B - Both Slow and Fast Axis Working |
L - 900um Loose Tube Panda Fiber |
|
|
|
S - Specify |
| ¢Ú: Port |
¢Ý¢Ý¢Ý: Connector Type on Port 1, 2 & 3 |
| 1 - 1x2 |
1 - FC/UPC |
¢ß: Fiber Type on Tap port |
|
2 - FC/APC |
H - HI 1060 Fiber |
| ¢Û¢Û: Coupling Ratio |
3 - SC/UPC |
P - PM Panda Fiber |
| 01 - 1/99 |
4 - SC/APC |
S - Specify |
| 02 - 2/98 |
N - None |
|
| 05 - 5/95 |
S - Specify |
¢à: Fiber Length |
| 10 - 10/90 |
|
|
0.8 - 0.8m |
| 50 - 50/50 |
|
|
S - Specify |
| SS - Specify |
|
|
|
