1064nm In-line Polarizer |
|
|
| |
Features |
|
Applications |
|
|
| |
High Extinction Ratio |
|
Communication Systems |
|
|
| |
Low Insertion Loss |
|
Test Instrumentations |
|
|
| |
High Return Loss |
|
Fiber Lasers |
|
|
|
| |
|
|
Sensors |
|
|
|
| |
|
|
|
|
|
|
| |
Specification |
|
| |
Parameters |
Unit |
Values |
| |
Center Wavelength |
nm |
1064 |
| |
Operating Wavelength Range |
nm |
± 30 |
| |
Typ. Insertion Loss at 23℃ |
dB |
0.4 |
| |
Max. Insertion Loss at 23℃ |
dB |
0.6 |
| |
Min. Return Loss |
dB |
50 |
| |
Typ. Extinction Ratio at 23℃ |
dB |
30 |
| |
Min. Extinction Ratio at 23℃ |
dB |
28 |
| |
Max. Optical Power (CW) |
mW |
300 |
| |
Max. Tensile Load |
N |
5 |
| |
Operating Temperature |
℃ |
-5 to +70 |
| |
Storage Temperature |
℃ |
-40 to + 85 |
| |
|
|
|
|
|
|
| |
*Above specifications are for devices without connectors. |
|
|
|
| |
*For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower, and ER will be 2dB lower. |
| |
*The PM fiber and the connector key are aligned to the slow axis. |
|
|
|
| |
|
|
|
|
|
|
| |

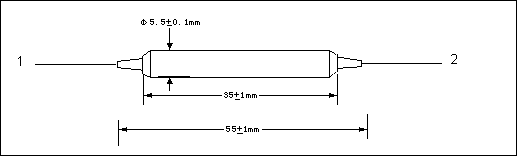

Package Dimensions |
|
|
| |
|
|
|
|
|
|
| |
|
|
|
|
| |
Ordering information |
|
|
|
|
|
| |
AILP-①①-②②-③③-④④-⑤ |
|
|
|
|
|
| |
|
|
|
|
|
|
| |
①①: Wavelength |
|
③③: Fiber Jacket on Port 1 & Port 2 |
|
| |
06 - 1064nm |
|
B - 250um Bare Fiber |
|
|
| |
SS - Specify |
|
L - 900um Loose Tube |
|
|
| |
|
|
S - Specify |
|
|
|
| |
②②: Connector Type on Port 1 & 2 |
|
|
|
|
| |
1 - FC/UPC |
|
④④: Fiber Type on Port 1 & 2 |
|
| |
2 - FC/APC |
|
1 - PM 980 Panda Fiber |
|
|
| |
3 - SC/UPC |
|
2 - HI 1060 Fiber |
|
|
| |
4 - SC/APC |
|
|
|
|
|
| |
N - None |
|
⑤: Fiber Length |
|
|
| |
S - Specify |
|
0.8 - 0.8m |
|
|
|
| |
|
|
S - Specify |
|
|
|
