Bandpass Filter
|
|
Features |
|
Applications |
|
|
|
|
High Isolation |
|
Fiber Lasers |
|
|
|
Low Insertion Loss |
|
Amplifiers |
|
|
|
|
High Return Loss |
|
|
|
|
|
|
Excellent Environmental Stability |
|
|
|
|
|
|
|
|
|
|
|
Specifications |
|
|
|
|
Parameters |
Unit |
Values |
|
|
|
Center Wavelength |
nm |
1064 |
|
|
|
Max. Insertion Loss over CWL+/-2.5nm |
dB |
0.8 |
|
|
|
Min. Pass Bandwidth at 0.5dB |
nm |
5 |
|
|
|
Max. Stop Bandwidth at 25dB |
dB |
22 |
|
|
|
Max. PDL |
dB |
0.1 |
|
|
|
Min. Optical Return Loss |
dB |
50 |
|
|
|
Max. Optical Power (CW) |
mW |
300 |
|
|
|
Max. Tensile Load |
N |
5 |
|
|
|
Fiber Type |
¡¡ |
HI 1060 Fiber |
|
|
|
Operating Temperature |
¡æ |
-5 to +70 |
|
|
|
Storage Temperature |
¡æ |
-40 to +85 |
|
|
|
|
|
|
|
|
|
|
*Above specifications are for device without connector. |
|
|
|
|
|
*For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower . |
|
|
|
|
|
|
|
|

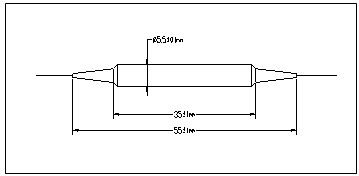

Package Dimensions |
|
|
|
|
|
|
|
|
|
Ordering Information |
|
|
|
|
|
|
ABPF-¢Ù¢Ù¢Ù¢Ù-¢Ú¢Ú-¢Û¢Û-¢Ü-¢Ý-¢Þ |
|
|
|
|
|
|
|
|
|
|
|
|
|
¢Ù¢Ù¢Ù¢Ù: Center Wavelength |
¢Ü: Connector Type for port 1 & 2 |
¢à: Fiber Length |
|
|
|
06 - 1064nm |
1 - FC/UPC |
1.0 - 1.0m |
|
|
|
SSSS - Specify |
2 - FC/APC |
S - Specify |
|
|
3 - SC/UPC |
|
|
|
|
¢Ú¢Ú: Pass Band Width |
4 - SC/APC |
|
|
|
|
05 - 5nm |
N - None |
|
|
|
|
SS - Specify |
S - Specify |
|
|
|
|
|
|
|
|
|
|
¢Û¢Û: Stop Band Width |
¢Ý: Fiber Jacket for port 1 & 2 |
|
|
|
|
22 - 22nm |
B - 250um Bare Fiber |
|
|
|
|
SS - Specify |
L - 900um Loose Tube |
|
|
|
|
|
C - 3mm Cable |
|
|
|
|
|
S - Specify |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
