Polarization
Beam Combiner/Splitter
|
|
|
| |
|
|
|
| |
Features |
|
Applications |
|
|
|
| |
Compact High Performance |
|
Polarization Mode Dispersion Compensator |
|
| |
High Extinction Ratio |
|
EDFA & Raman Amplifier |
|
| |
Low Insertion Loss |
|
Coherent Telecommunication Systems |
| |
High Directivity |
|
Fiber Optic Sensor |
| |
|
|
|
|
|
|
| |
Specifications |
|
| |
Parameter |
Unit |
Values |
|
| |
Grade |
|
Grade P |
Grade A |
|
| |
Center
Wavelength |
nm |
1310,1480 or 1550 |
|
| |
Operating Wavelength Range |
nm |
±40 |
|
| |
Typ. Insertion loss |
dB |
0.4 |
0.5 |
|
| |
Max. Insertion loss |
dB |
0.6 |
0.7 |
|
| |
Min. Return
Loss |
dB |
50 |
|
| |
Min. Extinction Ratio (for Splitter
only) |
dB |
22 |
20 |
|
| |
Min. Directivity |
dB |
50 |
|
| |
Max. Optical Power (CW) |
mW |
500 |
|
| |
Max.
Tensile Load |
N |
5 |
|
| |
Fiber Type |
|
PM Panda Fiber on Port 1 & 2 |
|
| |
Operating
Temperature |
℃ |
-5 to
+70 |
|
| |
Storage
Temperature |
℃ |
-40 to
+85 |
|
| |
|
|
|
|
| |
*Above specifications are
for device without connector. |
|
|
| |
*For devices with
connectors, IL will be 0.3dB higher, RL will be 5dB lower and ER will be 2dB
lower. |
|
| |
*The PM fiber and the
connector key are aligned to the slow axis. |
|
|
| |
|
|
|
| |

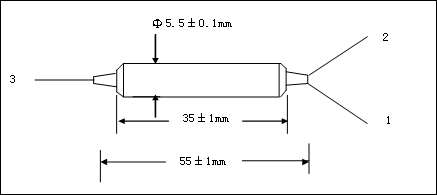

Package Dimensions |
|
|
| |
 |
| |
|
|
| |
Ordering Information |
|
|
|
| |
APBC-①①-②-③③③-④④④-⑤-⑥ |
|
|
|
| |
APBS-①①-②-③③③-④④④-⑤-⑥ |
|
|
|
| |
|
|
|
|
| |
①①: Wavelength |
③③③: Connector Type on Port 1, 2 & 3
|
⑤: Fiber Type on Port 3 |
|
| |
31 - 1310nm |
1 - FC/UPC |
1 - SMF-28e Fiber |
|
| |
48 - 1480nm |
2 - FC/APC |
2 - PM Panda Fiber, Slow Axis align
45°to Port 1 |
|
| |
55 - 1550nm |
3 - SC/UPC |
3 - PM Panda Fiber, Slow Axis align to
Port 1 |
|
| |
SS - Specify |
4 - SC/APC |
S - Specify |
|
| |
|
N - None |
|
| |
②: Grade |
S - Specify |
⑥: Fiber Length |
|
| |
P - Premium |
|
0.8 - 0.8m |
|
| |
A - A Grade |
④④④:
Fiber Jacket on Port 1, 2 & 3 |
S - Specify |
|
| |
|
B - 250um Bare Fiber |
|
| |
D - 400um Bare Fiber (only for PM
Fiber) |
|
| |
L - 900um Loose Tube |
|
| |
S - Specify |
|
|
|
|
|
|
|
|
