Amplified Spontaneous Emission Filter |
|
|
| Features |
|
|
Applications |
| Low Insertion Loss |
|
|
EDFAs |
| Good Isolation |
|
|
DMWDM Systems |
| High
Power Handling Capability |
|
|
|
| Specifications
|
|
|
| Parameters |
Unit |
Values |
| Pass Band |
Wavelength Range |
nm |
1544 - 1565 |
| Max. Insertion Loss |
dB |
0.6 |
| Typ. Insertion Loss |
dB |
0.4 |
| Rejection Band |
Wavelength Range |
nm |
1510 - 1538 |
| Min. Isolation |
dB |
16 |
| Min. Return Loss |
dB |
50 |
| Max. PDL |
dB |
0.05
|
| Typ. PDL |
dB |
0.02 |
| Thermal Stability |
dB/¡æ |
¡Ü0.005 |
| Max. Optical Power (CW) |
mW |
500 |
| Max. Tensile Load |
N |
5 |
| Fiber Type |
¡¡ |
SMF-28e Fiber |
| Operating Temperature |
¡æ |
-5 to +70 |
| Storage Temperature |
¡æ |
-40 to +85 |
|
|
| *Above
specifications are for device without connector. |
|
| *For
devices with connectors, IL will be 0.3dB higher and RL will be 5dB lower. |
|
|

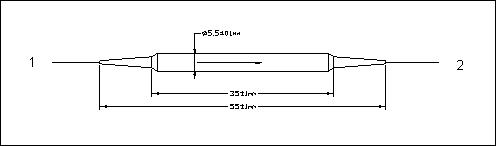

| Package
Dimensions |
|
 |
|
| Ordering
Information |
|
|
| AASEF-¢Ù¢Ù¢Ù¢Ù-¢Ú¢Ú-¢Û¢Û-¢Ü |
|
|
|
|
|
| ¢Ù¢Ù¢Ù¢Ù: Wavelength |
¢Û¢Û:
Fiber Jacket on Port 1 & 2 |
| 4438 - 1544-1565nm Pass / 1510-1538nm
Reflect |
B - 250um Bare Fiber |
| SSSS - Specify |
|
L
- 900um Loose Tube |
|
C - 3mm Loose Cable |
| ¢Ú¢Ú: Connector Type on Port 1 & 2 |
S - Specify |
| 1 - FC/UPC |
|
| 2 - FC/APC |
|
¢Ü:
Fiber Length |
| 3 - SC/UPC |
|
1 - 1.0m |
| 4 - SC/APC |
|
S - Specify |
| N - None |
|
|
| S - Specify |
|
|
|
|
|
|
