Multimode
Polarization Insensitive Isolator |
|
|
|
| Features
|
Applications |
|
| Low Insertion Loss |
Amplifiers |
|
| Low PDL & PMD |
Fiber Optic Instriments |
|
| Optical Path Epoxy Free |
Fiber Lasers |
|
| ¡¡ |
LANs |
|
|
|
|
|
| Specifications |
|
| Parameters |
Unit |
Values |
| Center
Wavelength |
nm |
1310 or 1550 |
| Operating Wavelength Range |
nm |
¡À20 |
| Typ. Peak
Isolation |
dB |
50 |
| Min.
Isolation at 23¡æ
|
dB |
40 |
| Typ.
Insertion Loss at 23¡æ
|
dB |
0.4
|
| Max.
Insertion Loss at -5¡æ-70¡æ |
dB |
0.5
|
| Min. Return
Loss (Input/Output) |
dB |
40/40 |
| Max.TDL |
dB |
0.1
|
| Max. Optical
Power (CW) |
mW |
500 |
| Max. Tensile
Load |
N |
5 |
| Fiber Type |
um |
Multimode Fiber 62.5/125 or 50/125 |
| Operating
Temperature |
¡æ |
-5 to +70 |
| Storage
Temperature |
¡æ |
-40 to +85 |
|
|
|
| *Above
specifications are for device without connector. |
|
| *For
devices with connectors, IL will be 0.2 dB higher and RL will be 20 dB lower
. |
| *Above
specifications are measured in low order modes. |
|
|
|
|

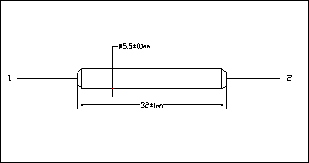

| Package Dimensions |
|
|
 ¡¡¡¡ |
|
|
| Ordering Information |
|
| AMMPII-¢Ù¢Ù-¢Ú-¢Û¢Û-¢Ü¢Ü-¢Ý |
|
|
|
|
|
|
|
¢Û¢Û: Connector Type on Port 1 & 2 |
¢Ü¢Ü: Fiber Jacket on Port 1 & 2 |
| 31 - 1310nm |
1 - FC/UPC |
B - 250um Bare
Fiber |
| 55 - 1550nm |
2 - FC/APC |
L - 900um Loose
Tube |
| SS - Specify |
3 -
SC/UPC |
C - 3mm Cable |
|
|
4 - SC/APC |
S - Specify |
| ¢Ú: Fiber
Core Diameter |
N - None |
|
|
|
| 1 - 62.5um |
S - Specify |
¢Ý: Fiber Length |
| 2 - 50um |
|
1 - 1.0m |
|
|
S - Specify |
|
|
|
|
