N¡Á1 Multi-Mode Pump Combiner
|
|
|
|
| Features
|
Applications |
|
| High Power Handling |
High Power Fiber Lasers
|
|
| High Pump Efficiency |
High Power Amplifiers
|
|
| High Reliability |
High Power Pump
|
|
| Pump Efficiency Wavelength Insensitive
¡¡ |
LANs |
|
|
|
|
|
| Specifications |
|
| Parameters |
Unit |
Values |
| Pump Number
|
|
3 or 4
|
5 or 6 or 7 |
|
nm |
800-1000
|
| Input Fiber Type |
- |
MMF 105/125, NA0.15 or 0.22 |
| Output Fiber Type
|
- |
MMF 105/170, NA 0.47 or 125/170, NA 0.47 or MMF 200/220, NA 0.22 or MMF 200/270, NA 0.47 |
| Input Pump Power (max)
|
W |
10 x 3 or 10 x 4
|
10 x 5 or 10 x 6 or 10 x 7 |
|
|
dB |
<0.35
|
<0.45 |
| Pump Efficiency
|
- |
> 92%
|
> 90% |
| Package Dimensions
|
mm |
60 x 12 x 8 or Dia. 3.0 x 60
|
60 x 12 x 8 or Dia. 4.5 x 60 |
| Operating
Temperature |
¡æ |
-20 to +70
|
| Storage
Temperature |
¡æ |
-40 to +85 |
|
|
|
| *Customized fibers pls discuss with Optizone.
|
|
| *Mode number summation of all input fibers should be less than that of output fiber.
|
|
|
|

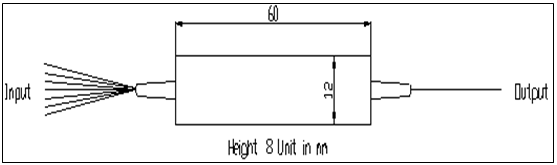

| Package Dimensions |
|
|
 |
|
|
| Ordering Information |
|
| AMMPC-¢Ù¢Ù-¢Ú-¢Û¢Û-¢Ü-¢Ý-¢Þ |
|
|
|
|
|
|
|
¢Û: Output Fiber Type |
|
| 03 - 3 Pumps |
3 - 105/170, NA 0.47
|
B - Bare fiber
|
| 04 - 4 Pumps |
4 - 125/170, NA 0.47
|
L - 900um Loose Tube
|
| 05 - 5 Pumps |
5 - 200/220, NA 0.22
|
S - Specify
|
| 06 - 6 Pumps |
6 - 200/270, NA 0.47 |
|
|
|
| 07 - 7 Pumps |
S - Specify |
|
|
|
| |
|
|
|
|
| ¢Ú: Input Fiber Type |
¢Ü: Package Type |
¢Þ: Fiber Length |
|
|
| 1 - 105/125, NA 0.15 |
R - Rectangle |
0.8 - 0.8m |
| 2 - 105/125, NA 0.22
|
C- Cylinder |
S - Specify
|
| S - Specify |
|
|
|
|
|
|
|
