Mini Polarization Maintaining Tap Isolator Hybrid
|
|
Features |
|
Applications |
|
|
|
|
High Extinction Ratio |
|
Compact Fiber Amplifiers |
|
|
|
Low Insertion Loss |
|
Compact Fiber Optic Systems |
|
|
|
|
Low Cost |
|
Fiber Lasers |
|
|
|
|
Small Package |
|
Fiber Sensors |
|
|
|
|
|
|
|
|
|
|
|
Specifications |
|
|
|
|
Parameters |
Unit |
Values |
|
|
|
Stage |
|
Single Stage |
Dual Stage |
|
|
|
Signal Wavelength Range |
nm |
1530~1570 |
|
|
|
Max. Signal Insertion Loss (Input to Output) |
dB |
0.8(for 1%), 1.0(for 5%) |
1.0( for 1%), 1.2( for 5%) |
|
|
|
Signal Tap Ratio (Input to Tap) |
% |
1+/-0.2, 5+/-1 |
1+/-0.2, 5+/1 |
|
|
|
Typ. Signal Peak Isolation (Output to Input) |
dB |
40 |
52 |
|
|
|
Min. Signal Isolation at 23¡æ |
dB |
28 |
45 |
|
|
|
Min. Extinction Ratio (only for B Type) |
dB |
20 |
20 |
|
|
|
Min. Extinction Ratio (only for F Type) |
|
23 |
23 |
|
|
|
Min. Return Loss (for all ports) |
dB |
50 |
50 |
|
|
|
Max. Optical Power (CW) |
mW |
300 |
|
|
|
Max. Tensile Load |
N |
5 |
|
|
|
Fiber Type |
|
PM 1550 Panda Fiber for Input and Output Ports, SMF-28e Fiber for Tap Port |
|
|
|
Operating Temperature |
¡æ |
0 to +70 |
|
|
|
Storage Temperature |
¡æ |
-40 to +85 |
|
|
|
|
|
|
|
|
|
|
*Above specifications are for device without connector. |
|
|
|
|
|
*For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower, ER will be 2dB lower. |
|
|
|
*The PM fiber and the connector key are aligned to the slow axis and fast axis is blocked. |
|
|
|
|
|
|
|
|
|
|

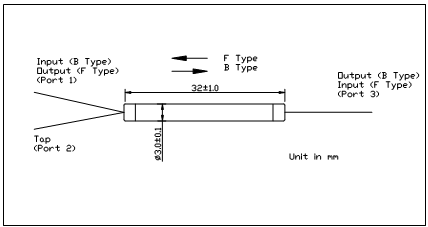

Package Dimensions |
|
|
|
|
|
|
|
|
|
Ordering Information |
|
|
|
|
|
|
AMTAPI-¢Ù¢Ù-¢Ú-¢Û¢Û-¢Ü-¢Ý¢Ý¢Ý-¢Þ¢Þ¢Þ-¢ß |
|
|
|
|
|
|
|
|
|
|
|
|
|
¢Ù¢Ù: Wavelength |
¢Ü: Axis Alignment |
¢Þ¢Þ¢Þ: Fiber Jacket on Port 1, 2 & 3 |
|
55 - 1550nm |
F - Fast Axis Blocked |
B - 250um Bare Fiber |
|
|
|
SS - Specify |
B - Both Slow and Fast Axis Working |
L - 900um Loose Tube |
|
|
|
S - Specify |
|
¢Ú: Stage Type |
¢Ý¢Ý¢Ý: Connector Type on Port 1, 2 & 3 |
|
|
1 - Single Stage |
1 - FC/UPC |
¢ß: Fiber Length |
|
|
|
2 - Dual Stage |
2 - FC/APC |
0.8 - 0.8 m |
|
|
|
|
3 - SC/UPC |
S - Specify |
|
¢Û¢Û: Tap Ratio |
4 - SC/APC |
|
|
|
|
01 - 1% |
N - None |
|
|
|
|
05 - 5% |
S - Specify |
|
|
|
|
SS - Specify |
|
|
|
|
