Mini Polarization Maintaining Faraday Mirror
|
|
Features |
|
Applications |
|
|
|
|
Low Insertion Loss |
|
Fiber Optic Instruments |
|
|
|
High Return Loss |
|
Fiber Sensors |
|
|
|
|
Excellent Evironment Stability |
|
Fiber Lasers |
|
|
|
|
High Power Capability |
|
Coherent Detecting |
|
|
|
|
Small Package |
|
Research |
|
|
|
|
|
|
|
|
|
Specifications |
|
|
|
|
Parameters |
Unit |
Values |
|
|
|
Center Wavelength |
nm |
1310, 1480 or 1550 |
|
|
|
Operating Wavelength Range |
nm |
¡À15 |
|
|
|
Typ. Insertion Loss |
dB |
0.4 |
|
|
|
Max. Insertion Loss |
dB |
0.6 |
|
|
|
Faraday Rotation Angle (Single Pass) |
¡æ |
45 |
|
|
|
Max. Rotation Angle Tolerance at 23¡æ, CWL |
¡æ |
¡À1 |
|
|
|
Min. Extinction Ratio |
dB |
20 |
|
|
|
Max. Optical Power (CW) |
mW |
500 |
|
|
|
Max. Tensile Load |
N |
5 |
|
|
|
Fiber Type |
¡¡ |
Corning SMF-28e or Specify |
|
|
|
Operating Temperature |
¡æ |
-5 to +70 |
|
|
|
Storage Temperature |
¡æ |
-40 to +85 |
|
|
|
|
|
|
|
|
|
|
*Above specifications are for device without connector. |
|
|
|
|
|
*For devices with connectors, IL will be 0.3dB higher and ER will be 2dB lower. |
|
|
|

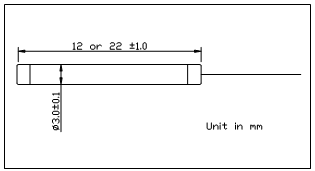

Package Dimensions |
|
|
|
|
|
|
|
|
|
Ordering Information |
|
|
|
|
|
|
AMFM- ¢Ù¢Ù-¢Ú-¢Û-¢Ü-¢Ý |
|
|
|
|
|
|
|
|
|
|
|
|
|
¢Ù¢Ù: Wavelength |
¢Û: Connector Type |
¢Ü: Fiber Jacket |
|
|
|
31 - 1310nm |
1 - FC/UPC |
B - 250um Fiber |
|
|
|
48 - 1480nm |
2 - FC/APC |
D - 400um Fiber |
|
55 - 1550nm |
3 - SC/UPC |
L - 900um Loose Tube |
|
SS - Specify |
4 - SC/APC |
S - Specify |
|
|
|
|
N - None |
|
|
|
|
¢Ú: Package Length |
S - Specify |
¢Ý: Fiber Length |
|
|
|
1 - 12mm |
|
0.8 - 0.8m |
|
|
|
2 - 22mm |
|
S - Specify |
|
|
