Polarization Maintaining Isolator
|
|
|
|
| Features
|
Applications
|
|
| High Isolation
|
Fiber Optic Lasers
|
|
|
| Low Insertion Loss
|
Optical Transmitters & Transceivers
|
|
|
| Large Aperture Features
|
Fiber Amplifiers
|
|
|
|
|
Fiber Sensors
|
|
|
| Specifications |
| Parameters |
Unit |
Values |
| Stage |
¡¡ |
Single Stage |
Dual Stage |
| Grade |
¡¡ |
Grade P |
Grade A |
Grade P |
Grade A |
| Center Wavelength (¦Ëc)
|
nm |
1310, 1480 or 1550 |
| Operating
Wavelength Range |
nm |
¡À20 |
| Typ. Peak
Isolation |
dB |
42 |
40 |
58 |
55 |
| Min.
Isolation at 23¡æ
|
dB |
28 |
26 |
48 |
45 |
| Typ.
Insertion Loss at 23¡æ
|
dB |
0.4 |
0.5 |
0.5 |
0.6 |
| Max.
Insertion Loss at -5¡æ-70¡æ |
dB |
0.55 |
0.65 |
0.65 |
0.8 |
| Min. Return
Loss (Input/Output) |
dB |
55 |
55 |
55 |
55 |
| Min. Extinction Ratio(only for B type)
|
dB |
20 |
18 |
20 |
18 |
| Min. Extinction Ratio(only for F type)
|
dB |
25 |
23 |
25 |
23 |
| Max. Optical
Power (CW) |
mW |
500 |
| Max. Tensile
Load |
N |
5 |
| Fiber Type |
|
PM Panda Fiber
|
| Operating
Temperature |
¡æ |
-5 to +70 |
| Storage
Temperature |
¡æ |
-40 to +85 |
|
|
| *Above specifications are for device without connector.
|
|
| *For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower and ER will be 2dB lower.
|
|
| *The PM fiber and the connector key are aligned to the slow axis.
|
|
|
| |
|
|

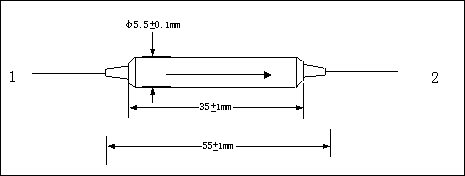

| Package Dimensions |
|
|
|
|
|
|
|
| Ordering Information |
|
|
|
| APMI-¢Ù¢Ù-¢Ú-¢Û-¢Ü-¢Ý¢Ý-¢Þ¢Þ-¢ß |
|
|
|
|
|
|
|
| ¢Ù¢Ù:
Wavelength |
|
|
¢Þ¢Þ: Fiber Jacket on Port 1 & 2 |
| 31 - 1310nm |
F - Fast Axis Blocked
|
|
B - 250um Fiber
|
| 48 - 1480nm |
B - Both Axis Working
|
|
D - 400um Fiber |
| 55 - 1550nm |
|
L - 900um Loose Tube
|
| SS - Specify |
¢Ý¢Ý:
Connector Type on Port 1 & 2 |
|
|
|
1 - FC/UPC |
|
|
|
| ¢Ú: Grade |
2 - FC/APC |
|
|
|
| P - Premium Grade |
3 - SC/UPC |
|
¢ß:
Fiber Length |
| A - A Grade
|
4 - SC/APC |
|
0.8 - 0.8m
|
|
|
N - None |
|
S - Specify |
|
| ¢Û:
Stage |
S - Specify |
|
|
| S - Single Stage |
|
|
| D - Dual Stage |
|
|
|
|
|
|
|
|
