Free
Space Isolator |
|
|
|
| Features
|
Applications
|
|
| High Isolation |
Fiber Optic Lasers |
|
| Low Insertion Loss |
Optical Transmitters
& Transceivers |
|
| Large Aperture Features |
Research |
|
|
|
| Specifications
|
| Parameter |
Unit |
Values |
| Stage |
¡¡ |
Single
Stage |
Dual Stage |
| Center Wavelength |
nm |
1310 or 1550
|
| Operating
Wavelength Range |
nm |
¡À20 |
| Typ. Peak
Isolation |
dB |
42 |
55 |
| Min.
Isolation at 23¡æ
|
dB |
24 |
44 |
| Typ. Insertion Loss |
dB |
0.2 |
0.3 |
| Max. Insertion Loss |
dB |
0.3 |
0.4 |
| Clear
Aperture |
mm |
0.8 or Specify |
| Polarization Plane of
Input |
¡¡ |
As
Indicated |
| Tilt Angle of
Input Polarization |
deg |
8 or Specify |
| Max. Optical
Power (CW) |
mW |
500 |
| Max. Tensile Load |
N |
5 |
| Operating
Temperature |
¡æ |
0 to +60 |
| Storage
Temperature |
¡æ |
-40 to
+85 |
|
|
|

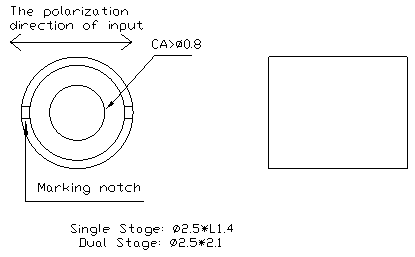

| Package Dimensions |
|
 |
|
| Ordering
Information |
|
| AFSI-¢Ù¢Ù-¢Ú-¢Û |
|
|
|
| ¢Ù¢Ù:
Wavelength |
|
¢Û: Package Size |
|
| 31 - 1310nm |
|
1 - dia2.5¡ÁL1.4mm
|
|
| 55 - 1550nm
|
|
2 - dia2.5¡ÁL2.1mm |
|
| SS - Specify
|
|
S - Specify |
|
| |
|
|
| ¢Ú:
Stage
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
