Isolator/Filter Wavelength Division Multiplexer Hybrid |
|
|
1310/1550 or 1480/1550 |
|
|
| Features
|
|
|
Applications
|
|
|
| All
Fiber Construction |
|
Fiber Optical Test
Equipment |
|
| High Reliability |
|
EDFA |
|
|
| Outstanding
Optical Performance |
|
WDM Network |
|
|
|
|
Fiber Lasers |
|
|
| Specifications |
|
| Parameters |
Unit |
Values |
|
| Stage |
¡¡ |
¡¡ |
Single
Stage |
Dual Stage |
|
| Pass Band |
Wavelength Range |
nm |
1530-1580 |
|
| Typ. Peak Isolation |
dB |
40 |
55 |
|
| Min. Isolation at 23¡æ |
dB |
30 |
45 |
|
| (1550¡À15 for
S. Stage, 1550¡À30 for D. Stage) |
|
| Max. Insertion Loss@C¡úP |
dB |
0.8 |
1.0 |
|
| Typ. Insertion Loss@C¡úP |
dB |
0.5 |
0.7 |
|
| Max. PDL |
dB |
0.1 |
0.15 |
|
| Max. PMD |
ps |
0.251 |
0.1 |
|
| Reflection Band |
Wavelength Range |
nm |
1270-1350 or 1450-1490 |
|
| Typ. Insertion Loss@C¡úR |
dB |
0.3 |
|
| Max. Insertion Loss@C¡úR |
dB |
0.5 |
|
| Max. PDL |
dB |
0.1 |
|
| Min. Return Loss |
dB |
50 |
|
| Max. Thermal Stability |
dB/¡æ |
0.005 |
|
| Max. Optical Power (CW) |
mW |
500 |
|
| Max. Tensile Load |
N |
5 |
|
| Fiber Type |
¡¡ |
SMF-28e Fiber |
|
| Operating Temperature |
¡æ |
-5 to +70 |
|
| Storage Temperature |
¡æ |
-40 to +85 |
|
|
|
|
|
| *PMD<0.1ps is available. Please refer to below ordering
information. |
|
|
|
| *Above
specifications are for device without connector. |
|
|
|
| *For
devices with connectors, IL will be 0.3dB higher and RL will be 5dB lower. |
|
|
|
|
|
|

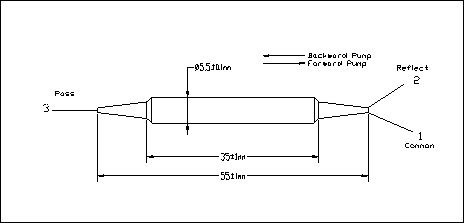

| Package Dimensions |
|
|
|
|
|
| Ordering Information |
|
|
|
|
| AIWDM-¢Ù¢Ù-¢Ú-¢Û-¢Ü-¢Ý¢Ý¢Ý-¢Þ¢Þ¢Þ-¢ß |
|
|
|
|
|
|
|
|
|
| ¢Ù¢Ù: Wavelength |
¢Ü:
PMD |
¢Þ¢Þ¢Þ:
Fiber Jacket on Port 1, 2
& 3 |
| 31 - 1530-1580nm Pass/1270-1350nm
Reflect |
1 - 0.1ps Max. |
B - 250um Bare
Fiber |
|
| 48 - 1530-1580nm Pass/1450-1490nm
Reflect |
2 - Refer to above spec. |
L - 900um Loose Tube |
|
|
S - Specify |
|
| ¢Ú: Stage |
|
¢Ý¢Ý¢Ý:
Connector Type on Port 1, 2 & 3 |
|
| S - Single Stage |
|
1 - FC/UPC |
¢ß: Fiber Length |
|
| D - Dual Stage |
|
2 - FC/APC |
1 - 1.0m |
|
|
|
3 - SC/UPC |
S - Specify |
|
| ¢Û: Pump
Type |
|
4 - SC/APC |
|
|
| F - Forward Pump |
N - None |
|
|
| B - Backward Pump |
S - Specify |
|
|
|
|
|
|
|
|
