1064nm Isolator Polarization Beam Combiner/Splitter |
| Features |
¡¡ |
Applications |
| High Extinction Ratio |
¡¡ |
Fiber Laser |
| Extremely Low Insertion Loss |
¡¡ |
Raman Amplifier |
| High Return Loss |
¡¡ |
¡¡ |
| ¡¡ |
¡¡ |
¡¡ |
| Specifications |
| Parameter |
Unit |
Values |
| Stage |
¡¡ |
Single stage |
| Center Wavelength |
nm |
1064 |
| Operating Wavelength Range |
nm |
¡À5 |
| Min. Isolation at 23¡ãC |
dB |
25 |
| Typ. Isolation |
dB |
35 |
| Typ. Insertion Loss |
dB |
1.8 |
| Max. Insertion Loss |
dB |
2.1 |
| Min. Return Loss |
dB |
50 |
| Min. Extinction Ratio (for Splitter only) |
dB |
22 |
| Min. Directivity |
dB |
50 |
| Max. Optical Power (CW) |
mW |
300 |
| Max. Tensile Load |
N |
5 |
| Fiber Type |
¡¡ |
PM 980 Panda Fiber on port 1 and 2 |
| Operating Temperature |
¡æ |
-5 to + 50 |
| Storage Temperature |
¡æ |
-40 to +85 |
| ¡¡ |
¡¡ |
¡¡ |
| *Above specifications are for device without connector. |
| *For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower and ER will be 2dB lower. |
| *The PM fiber and the connector key are aligned to the slow axis. |
| ¡¡ |
¡¡ |
¡¡ |

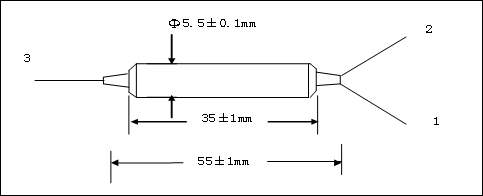

| Package Dimensions |
¡¡ |
¡¡ |
¡¡¡¡ |
| Ordering Information |
¡¡ |
¡¡ |
| AIPBC-¢Ù¢Ù-¢Ú¢Ú¢Ú-¢Û¢Û¢Û-¢Ü-¢Ý |
¡¡ |
¢Û¢Û¢Û: Fiber Jacket on Port 1, 2 & 3 |
| AIPBS-¢Ù¢Ù-¢Ú¢Ú¢Ú-¢Û¢Û¢Û-¢Ü-¢Ý |
¡¡ |
B - 250um Bare Fiber |
| ¡¡ |
¡¡ |
L - 900um Loose Tube |
| ¢Ù¢Ù: Wavelength |
¡¡ |
S - Specify |
| 06 - 1064nm |
¡¡ |
¡¡ |
| SS - Specify |
¡¡ |
¢Ü: Fiber Type on Port 3 |
| ¡¡ |
¡¡ |
1 - HI 1060 Fiber |
| ¢Ú¢Ú¢Ú: Connector Type on Port 1, 2 & 3 |
2 - Slow Axis align 45¡ã to Port 1 |
| 1 - FC/UPC |
¡¡ |
3 - Slow Axis align to Port 1 |
| 2 - FC/APC |
¡¡ |
S - Specify |
| 3 - SC/UPC |
¡¡ |
¡¡ |
| 4 - SC/APC |
¡¡ |
¢Ý: Fiber Length |
| N - None |
¡¡ |
0.8 - 0.8m |
| S - Specify |
¡¡ |
S - Specify |
