1064nm High
Power Polarization Insensitive Isolator
|
|
|
|
| Features
|
|
Applications
|
|
| Low Insertion Loss |
|
Fiber Laser |
|
|
| High Isolation |
|
Instrumentation |
|
| High Power Handling |
|
Fiber Amplifier |
|
|
| High Return Loss |
|
Lab Research |
|
|
|
|
|
| Specifications
|
| Parameters |
Unit |
Values |
| Center
Wavelength (¦Ëc) |
nm |
1064 or Specify |
| Operating
Wavelength Range |
nm |
¡À10 |
| Typ. Peak
Isolation |
dB |
30~35 |
|
| Min.
Isolation at 23¡æ
|
dB |
23 |
|
| Typ.
Insertion Loss
|
dB |
0.8 |
|
| Max.
Insertion Loss at 23¡æ, ¦Ëc |
dB |
1.2 |
|
| Min. Return Loss (Port1/Port2) |
dB |
50/50 |
|
| Max. Polarization Dependent Loss
|
dB |
0.15 |
|
| Max. Optical
Power (CW) |
W |
1, 3, 5, 10, 20 or Specify |
| Max. Tensile
Load |
N |
5 |
| Fiber Type |
¡¡ |
HI 1060 Fiber |
| Operating
Temperature |
¡æ |
-5 to +50 |
| Storage
Temperature |
¡æ |
-20 to+75 |
|
|
|

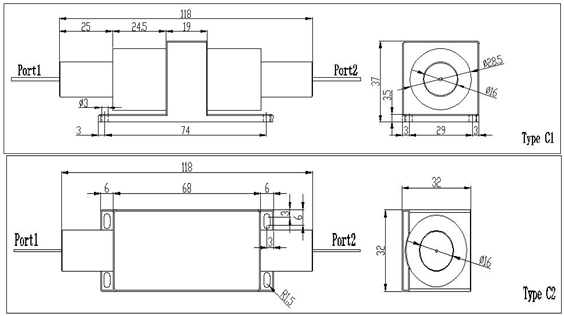

| Package Dimensions |
|
|
|
|
|
|
|
| Ordering Information |
|
|
| AHPII-¢Ù¢Ù-¢Ú¢Ú-¢Û¢Û-¢Ü¢Ü-¢Ý¢Ý-¢Þ |
|
|
|
|
|
|
|
|
|
| ¢Ù¢Ù: Wavelength |
2 |
¢Ý¢Ý:
Fiber Jacket for Port 1 & 2 |
| 06 - 1064nm |
01 - 1W
|
|
L
- 900um Loose Tube |
| SS - Specify |
03 - 3W
|
|
C - 3mm Loose Cable |
|
05 - 5W
|
|
S -
Specify |
| ¢Ú¢Ú: Package Type
| 10 - 10W |
|
|
|
| C1 - Type C1
|
20 - 20W |
|
¢Þ:
Fiber Length |
| C2 - Type C2 |
S -
Specify |
|
0.8 - 0.8m
|
|
|
|
|
|
S - Specify |
|
|
|
¢Ü¢Ü: Connector Type on Port 1 & 2 |
|
|
| |
N - None |
|
|
|
|
S - Specify
|
|
|
|
|
|
|
|
|
|
