2x2 Polarization Maintaining Optical
Circulator |
|
| |
|
|
|
| |
Features |
|
Applications |
|
| |
High Isolation |
|
Polarization Mode Dispersion Compensator |
|
| |
High Extinction Ratio |
|
EDFA & Raman Amplifier |
|
| |
Low Insertion Loss |
|
Coherent Telecommunication Systems |
|
| |
Excellent Environment Stability |
|
Fiber Optic Sensor |
|
| |
|
|
|
| |

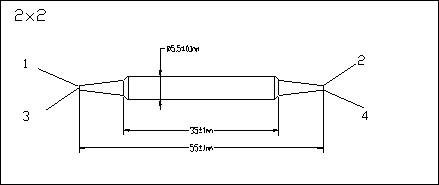

Specifications |
|
| |
Parameter |
Unit |
Values |
|
| |
Type |
|
Type A |
Type B |
|
| |
Center
Wavelength |
nm |
1310 or 1550 |
|
| |
Operating Wavelength Range |
nm |
± 30 |
± 20 |
|
| |
Min. Isolation at 23℃ |
dB |
40 |
20 |
|
| |
Typ. Isolation |
dB |
50 |
30 |
|
| |
Peak Isolation |
dB |
55 |
40 |
|
| |
Typ. Insertion Loss |
dB |
0.8 |
0.7 |
|
| |
Max. Insertion Loss |
dB |
1.1 |
1.0 |
|
| |
Min. Return
Loss |
dB |
55 |
|
| |
Min. Extinction Ratio |
dB |
20 |
20 |
|
| |
Min. Cross Talk (Port 1 to Port 3,
Port 2 to Port 4) |
dB |
50 |
|
| |
Max.
Optical Power (CW) |
mW |
500 |
|
| |
Max.
Tensile Load |
N |
5 |
|
| |
Fiber Type |
|
PM Panda Fiber |
|
| |
Operating
Temperature |
℃ |
-5 to
+70 |
|
| |
Storage
Temperature |
℃ |
-40 to
+85 |
|
| |
*Above specifications are
for device without connector. |
|
|
| |
*For devices with
connectors, IL will be 0.3dB higher, RL will be 5dB lower, and ER will be 2dB
lower. |
|
|
| |
*The
transmission optical path of A type is different from B type: A type: 1 ->
2, 2 -> 3, 3 -> 4;
B type: 1 -> 2, 2 -> 3, 3 -> 4, 4 ->
1. |
| |
*The PM fiber and the
key are aligned to the slow axis and fast axis is blocked. |
|
| |
|
|
|
| |
|
|
| |
 |
| |
|
|
| |
Ordering Information |
|
|
|
| |
APMCIR-①①-②-③-④④④④-⑤⑤⑤⑤-⑥ |
|
|
|
| |
|
|
|
|
| |
①①: Wavelength |
④④④④:
Connector Type on Port 1,2, 3 & 4 |
⑥: Fiber Length |
|
| |
31 - 1310nm |
1 - FC/UPC |
0.8 - 0.8m |
|
| |
55 - 1550nm |
2 - FC/APC |
S - Specify |
|
| |
SS- Specify |
3 - SC/UPC |
|
| |
4 - SC/APC |
|
| |
②: Type |
N - None |
|
|
| |
A - Type A |
S - Specify |
|
|
| |
B - Type B |
|
| |
⑤⑤⑤⑤:
Fiber Jacket on Port 1,2, 3 & 4 |
|
| |
③: Port |
B - 250um Bare Fiber |
|
| |
2 - 2x2 |
D - 400um Bare Fiber |
|
| |
L - 900um LooseTube |
|
| |
S - Specify |
|
|
|
|
|
|
|
