1064nm Polarization Maintaining Optical Fiber Mirror
|
|
Features |
|
Applications |
|
|
|
|
Low Insertion Loss |
|
Fiber Optics Lasers |
|
|
|
|
High Return Loss |
|
Fiber Sensors |
|
|
|
|
High Reliability & Stability |
|
Coherent Detecting |
|
|
|
|
|
|
|
|
|
Specifications |
|
|
|
|
Parameters |
Unit |
Values |
|
|
|
Center Wavelength |
nm |
1064 |
|
|
|
Operating Wavelength Range |
nm |
¡À30 |
|
|
|
Typ. Insertion Loss |
dB |
0.4 |
|
|
|
Max. Insertion Loss |
dB |
0.6 |
|
|
|
Min.Extinction Ratio
|
dB |
22 |
|
|
|
Max.Optical Power (CW) |
mW
|
300 |
|
|
|
Max. Tensile Load |
N
|
5 |
|
|
|
Fiber Type |
|
PM 980 Panda Fiber
|
|
|
|
Operating Temperature |
¡æ |
-5 to +70 |
|
|
|
Storage Temperature |
¡æ |
-40 to +85 |
|
|
|
|
|
|
|
|
|
|
*Above specifications are for device without connector |
|
|
|
|
*For devices with connectors, IL will be 0.3dB higher and ER will be 2dB lower.
|
|
|
|
|
|
|
|
|
|
|
|

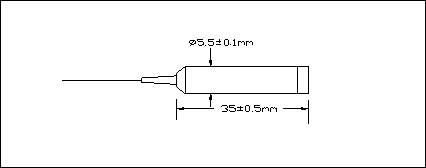

Package Dimensions |
|
|
|
|
|
|
|
|
Ordering Information |
|
|
|
|
|
|
APMOFM- ¢Ù¢Ù-¢Ú-¢Û-¢Ü
|
|
|
|
|
|
|
|
|
|
|
|
|
|
¢Ù¢Ù: Wavelength |
¢Û: Fiber Jacket
|
|
|
|
|
|
B - 250um Panda Fiber
|
|
|
|
|
SS - Specify |
L - 900um Loose Tube Panda Fiber
|
|
|
|
|
|
S - Specify |
|
|
|
|
¢Ú: Connector Type
|
|
|
|
|
|
1 - FC/UPC |
¢Ü: Fiber Length |
|
|
|
|
2 - FC/APC |
1 - 1m
|
|
|
|
|
3 - SC/UPC |
S - Specify |
|
|
|
|
4 - SC/APC |
|
|
|
|
|
N - None |
|
|
|
|
|
S - Specify |
|
|
|
|
