Polarization Insensitive 3ports 1064nm Optic Circulator
|
|
Features |
|
Applications |
|
|
|
|
Low Insertion Loss & PDL |
|
Optical Amplifiers |
|
|
|
|
High Channel Isolation |
|
FBG Applications |
|
|
|
|
Optical Path Epoxy Free |
|
Dispersion Compensation |
|
|
|
|
Telcordia Compliant |
|
Fiber Sensors |
|
|
|
|
|
|
|
|
|
Specifications |
|
|
|
|
Parameters |
Unit |
Values |
|
|
|
Center Wavelength |
nm |
1064 |
|
|
|
Operating Wavelength Range |
nm |
¡À5 |
|
|
|
Typ. Insertion Loss |
dB |
1.5 |
|
|
|
Max. Insertion Loss |
dB |
2 |
|
|
|
Typ. Isolation |
dB |
28 |
|
|
|
Min. Isolation |
dB |
23 |
|
|
|
Min. Directivity |
dB |
45 |
|
|
|
Min. Return Loss |
dB |
50 |
|
|
|
Min. PDL |
dB |
0.2 |
|
|
|
Max. Optical Power (CW, total) |
mW |
300 |
|
|
|
Max. Tensile Load |
N |
5 |
|
|
|
Fiber Type |
|
HI 1060 Fiber |
|
|
|
Operating Temperature |
¡æ |
-5 to +50 |
|
|
|
Storage Temperature |
¡æ |
-40 to +85 |
|
|
|
|
|
|
|
|
|
|
*Above specifications are for device without connector |
|
|
|
|
*For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower. |
|
|
|
|
|
|
|
|
|
|
|

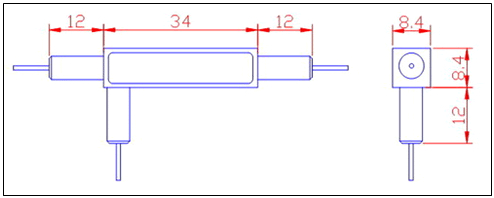

Package Dimensions |
|
|
|
|
|
|
|
|
Ordering Information |
|
|
|
|
|
|
FCIR-¢Ù¢Ù-¢Ú¢Ú¢Ú-¢Û¢Û¢Û-¢Ü |
|
|
|
|
|
|
|
|
|
|
|
|
|
¢Ù¢Ù: Wavelength |
¢Û¢Û¢Û: Fiber Jacket on Port 1, 2 & 3 |
|
|
|
|
|
B - 250um Bare Fiber |
|
|
|
|
SS - Specify |
L - 900um Loose Tube |
|
|
|
|
|
S - Specify |
|
|
|
|
¢Ú¢Ú¢Ú: Connector Type on Port 1, 2 & 3 |
|
|
|
|
|
1 - FC/UPC |
¢Ü: Fiber Length |
|
|
|
|
2 - FC/APC |
1 - 1.0m |
|
|
|
|
3 - SC/UPC |
S - Specify |
|
|
|
|
4 - SC/APC |
|
|
|
|
|
N - None |
|
|
|
|
|
S - Specify |
|
|
|
|
